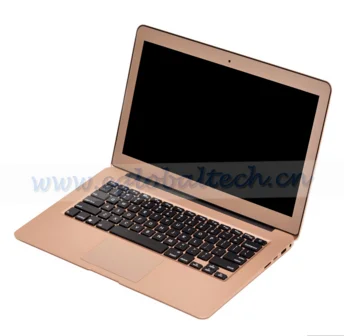

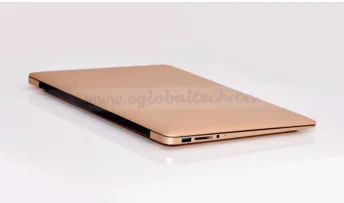

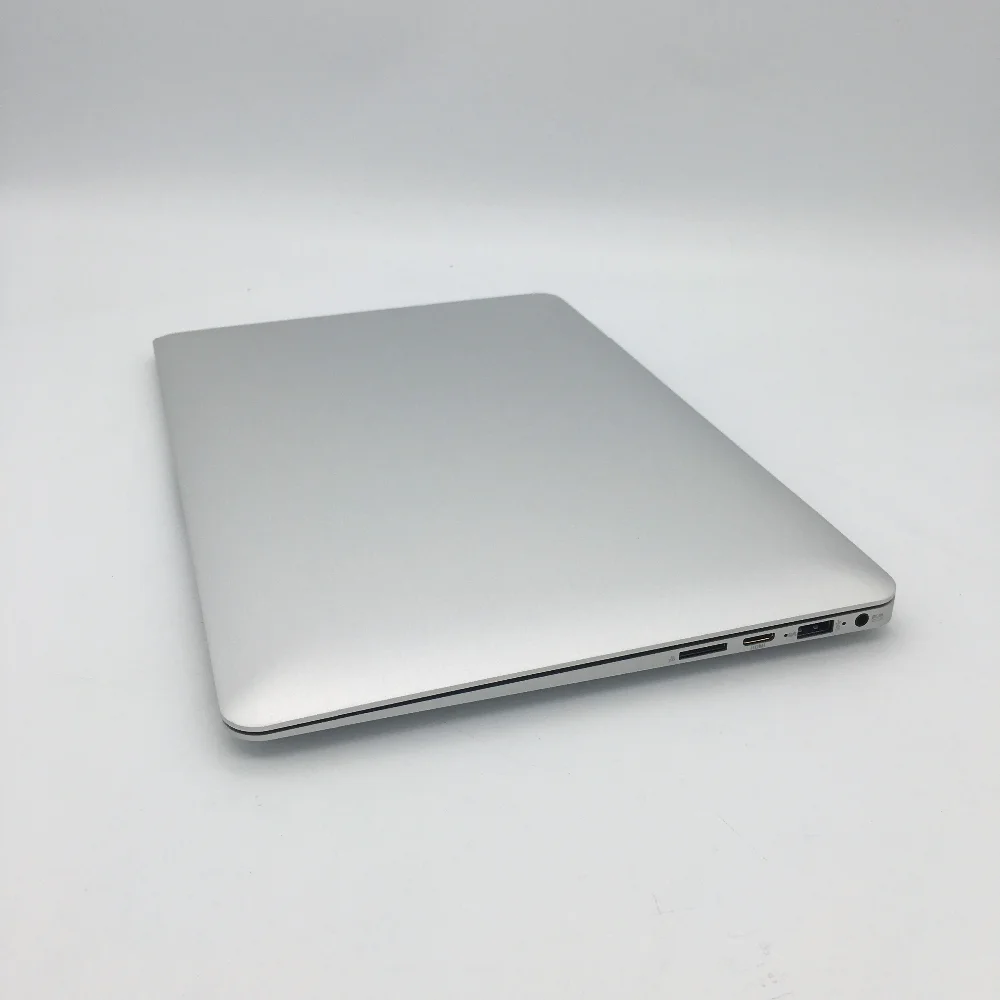

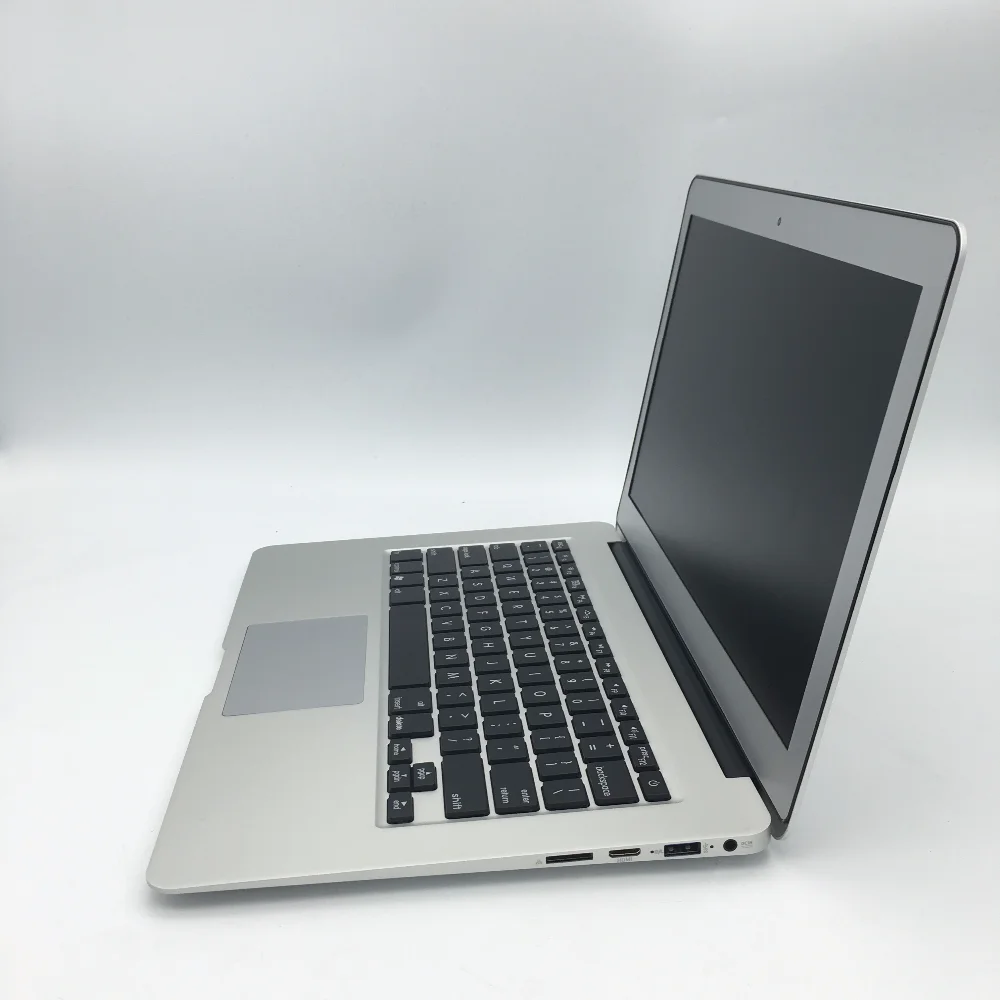

Fanless Mini Notebook 5200NB
General |
Processor | Onboard Intel Core i5 5200u 2.2GHz Max 2.7GHz processor |
Operating System | Windows 7/ Windows 8/Windows 10/ Linux Windows 10 64bit in English default |
Storage | Toshiba brand 256GB SSD default, update 512GB SSD |
Memory Memory Type | Max 16GB DDR3L, 8GB DDR3L 1600MHz default 1*SO-DDR3 SD RAM slot |
Chipset | Intel Broadwell Single Chipset |
Screen | 13.3inch HD 1080P LCD |
Sound | ONKYO Enbridge certification, Two loudspeakers, High Definition Audio |
Keyboard | High quality backlit keyboard, 4 files backlit adjustable |
Camera | 2.0M FHD |
CD-ROM | NO |
Processor details |
CPU | Intel Core i5 5200U |
Clock Speed | 2.2GHz(100MHz x 2.2) |
Processor Number | 2 core/ 4 threads |
Core code | BroadWell |
Technique | 14nm |
L1 data cache | 2 * 32 KB |
L2 code cache | 2 * 256KB |
L3 cache | 3 MB, CPU integrated |
Characteristic | MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4, AVX |
BIOS | AMI BIOS, ACPI supported, support call on function automatically, Wake-On-LAN |
Graphic Cards | Intel HD Graphics 5500(300~900MHz) |
Audio Cards | ALC662 chip, 6 channel sound Built-in high quality HD mini speaker |
Network card | Onboard RTL8111DL10/100Mbps/1000Mbps BaseT LAN |
Ethernet | 10/100/1000 BaseT LAN |
WIFI & BT | Built-in Intel ac3160 top double-frequency gigabit wireless card, max 433Mbps, built-in Bluetooth 4.0 |
I/0 Port |
Display port | 1 * Mini HDMI |
USB port | 2* USB 3.0 |
Other | 1* SD Card slot, 1* MIC port |
SATA port | 1 * MSATA3.0, 6Gb/s |
Ethernet port | RJ45 Lan Expansion port , 10/100/1000 Mbps Adaptive |
Power input port | 1* DC IN |
Power and Working Environment |
Battery | Li-Polymer Battery 7000mAh last 7 hours |
Input | DC100-240V AC/50Hz |
Output | DC 19V/2.2A |
Consumption | 15W |
Operating Temperature | 0°C~70°C (32°F~140°F) |
Storage Temperature | -20°C~80°C (-68°F~176°F) |
Humidity | 10%-90% |
